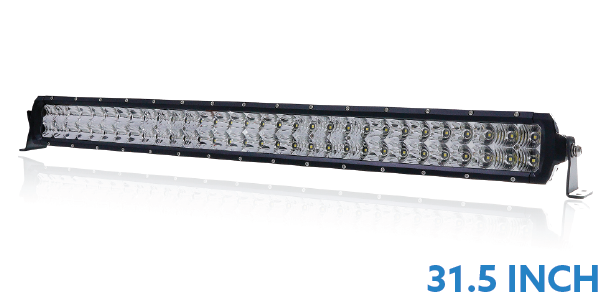

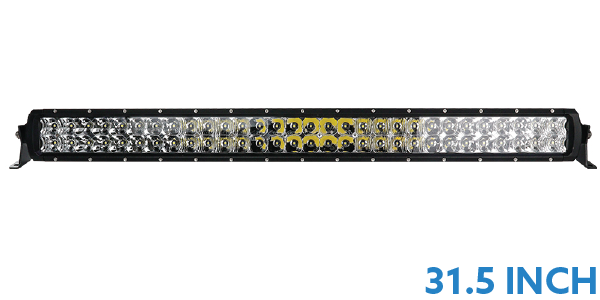

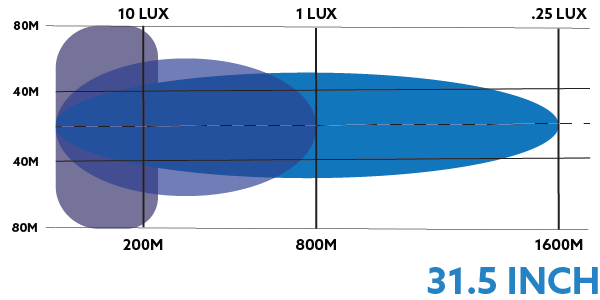

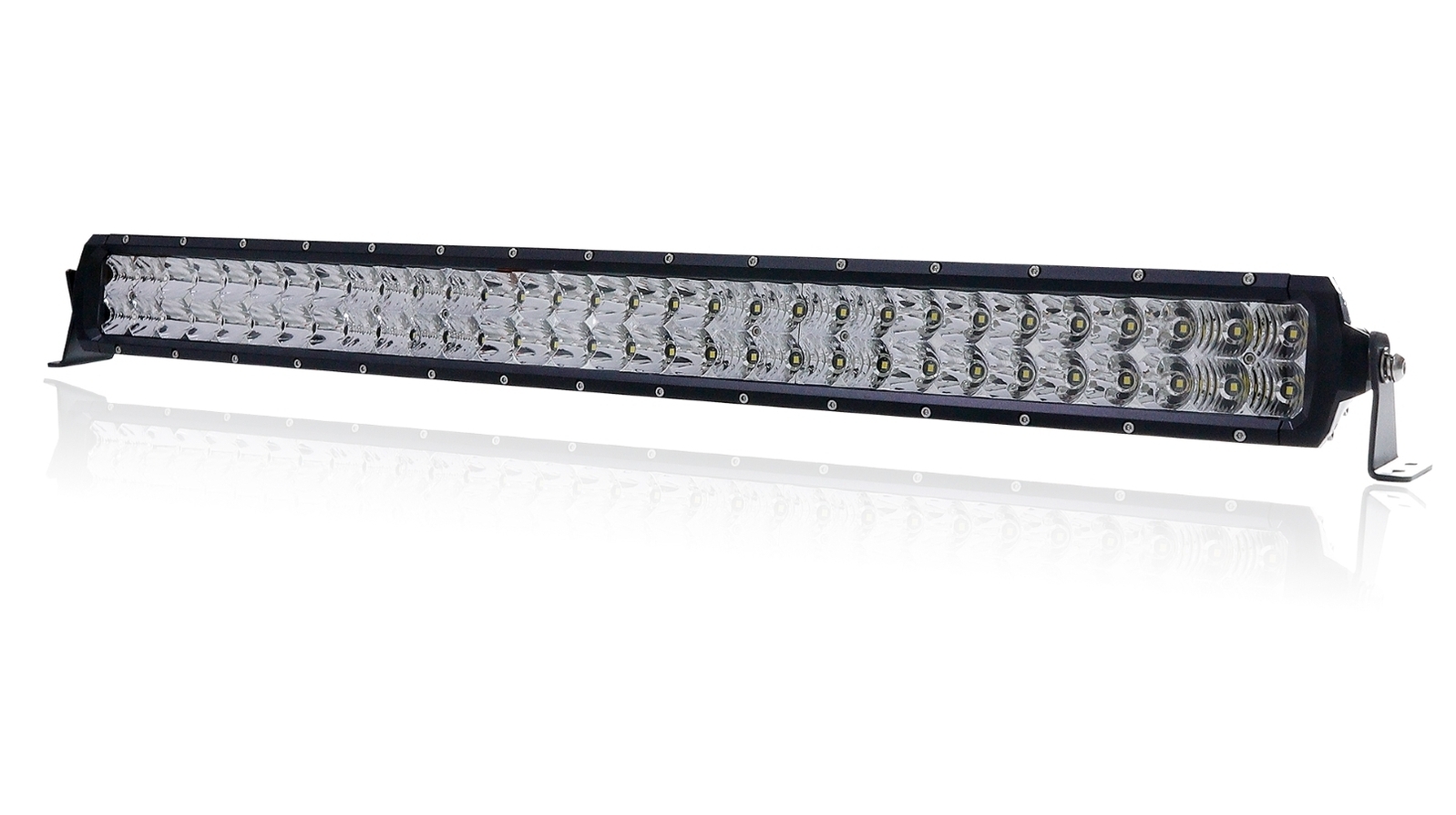

Our all new DRX SERIES 31.5" Inch is the result of our proven experience in delivering high performance LED lighting. Fitted with 60 of OSRAM’s® finest DURIS® LEDs and a combination reflector the DRX series produces a remarkable beam that pushes the flood beam out at 50° and spot beam at 5° all the way to whopping 800m @ 1 LUX



The DRX range feature our all new TruOptics beam pattern to focus the light where you need it most,

resulting in a +65% increase in lux performance in comparison to the outgoing 10 Series LED bars.









INSTANT PERFORMANCE

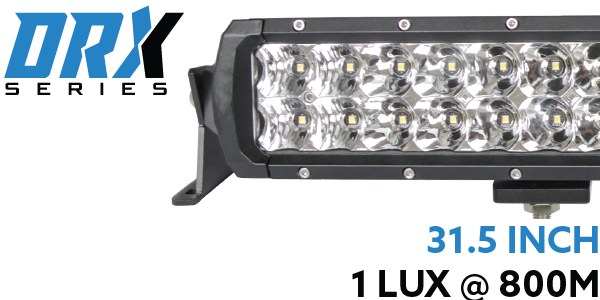

The DRX-31 features 60 of OSRAM’s® finest DURIS® LEDs, selected for its high output and matched optical geometry

The combination spot and flood reflector forms an astonishing beam that throwing beam wideout at 50° and spot beam punching all the way down to whopping 1 lux @ 800m

Pure White 5700K Colour temperature offers stunning clarity and definition and optimal Colour Rendering Index (CRI).

New circuit design allows 97% of input power to go directly to LEDs.





BUILT RUGGED

  • Diecast aluminum faceplate, extruded Aluminum heat sink
  • Dupont Powdercoat is UV and abrasion-resistant to ensure that our bars will never discolor.
  • Gore® Military breather protects against water & dust ingress
  • LEXAN Lens is unbreakable and optically clear
  • IP69K  - Dust + high-pressure water-proof. No hassle car washing!

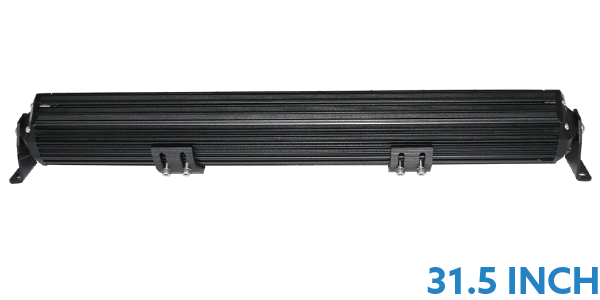

VERSATILE MOUNTING
Two separate mounting options

  1. The adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. This allows for easy mounting to UHF tabs or Bullbars.
  2. End mounts allow for 360 degrees of rotation.





CONTENTS

1 X 31.5” DRX Series Lightbar
2 x Side mount legs
2 x Adjustable bottom sliding legs

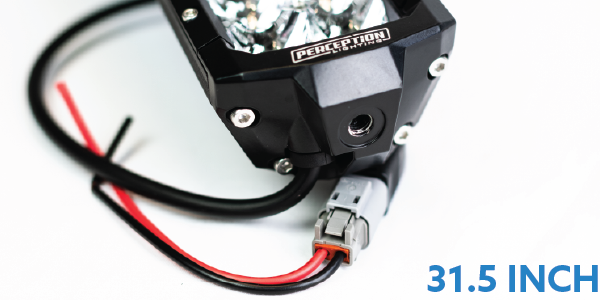

1 x Male & female deutcsh connectors







OSRAM LED TECHNOLOGY


Perception DRX series lightbars utilize a 5-watt OSRAM Duris P8 LEDs. The result is amazing distance and flood performance. These high output
5 watt LEDs are not to be confused with competitors' inferior 3-watt counterparts.





THE PERCEPTION LIGHTING® GUARANTEE


All Perception Lighting products are manufactured using the highest quality materials. We are so confident that we stand behind this product with a comprehensive 5 Year Australian Warranty.





SPECIFICATIONS


LED POWER     300W (60 x 5W)
LED MANUFACTURER   Genuine OSRAM®
LUX   1 LUX @ 800m
BEAM DISTANCE   0.25 LUX @ 1600m
BEAM PATTERN   Combination Spot & Flood
OUTPUT   19278 Lumens
HOUSING MATERIAL   Diecast Aluminium
LENS MATERIAL   GE Lexan Polycarbonate
MOUNTING BRACKET   Side & Bottom
OPERATING VOLTAGE   10-30V DC
COLOUR TEMPERATURE   5,700K
LED LIFESPAN   50,000 hours
CERTIFICATIONS   CE, RoHS, C-Tick




SKU DRX-31
Brand 12VoltDirect
