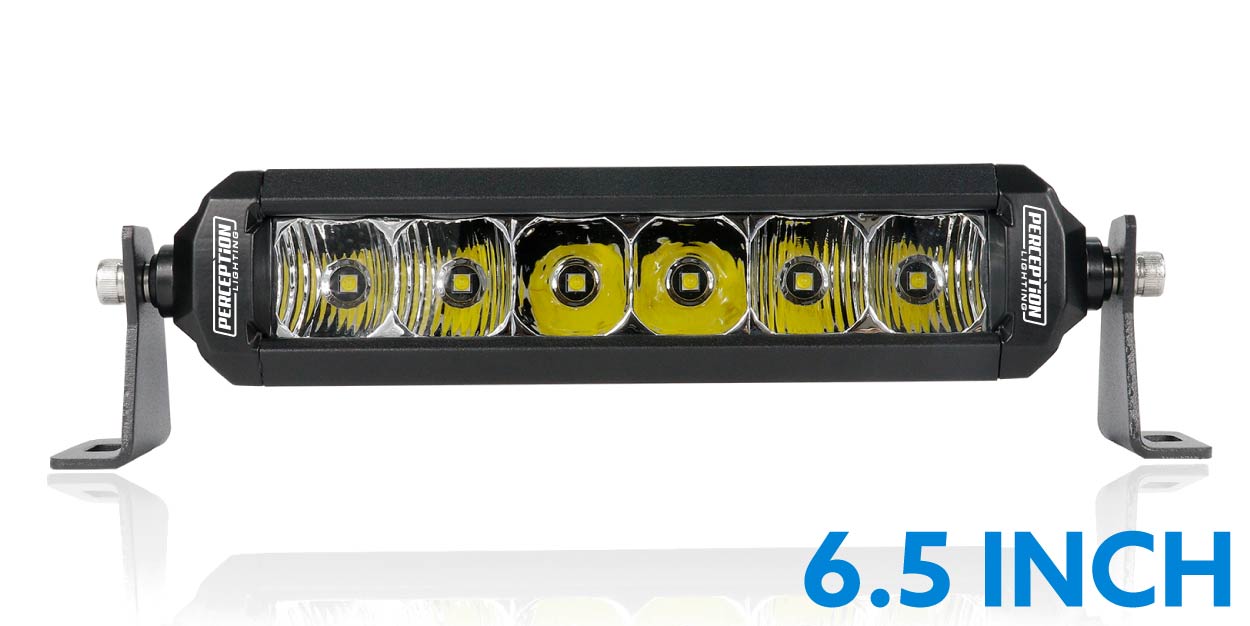

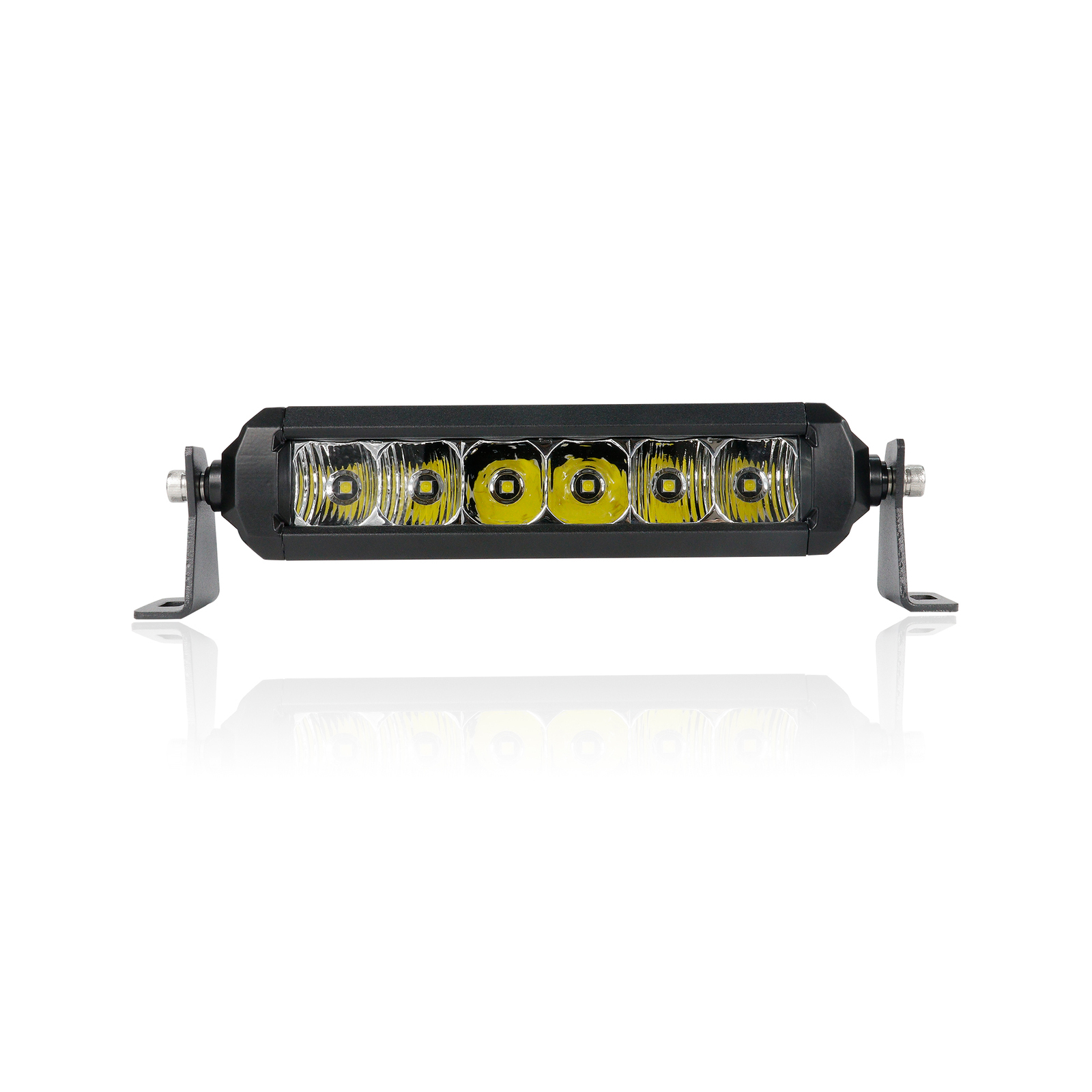

Our all new SRX SERIES 6.5" Inch is the result of our proven experience in delivering high performance LED lighting. Fitted with 6 of OSRAM’s® finest DURIS® LEDs and a combination reflector the SRX series produces a remarkable beam that pushes the flood beam out at 50° and spot beam at 5° all the way to whopping 1 lux @ 260m

The SRX range feature our all new TruOptics beam pattern to focus the light where you need it most,

resulting in a +65% increase in lux performance in comparison to the outgoing 10 Series LED bars.
















INSTANT PERFORMANCE


The SRX-6 features 6 of OSRAM’s® finest DURIS® LEDs, selected for its high output and matched optical geometry

The combination spot and flood reflector forms an astonishing beam that throwing beam wideout at 50° and spot beam punching all the way down to whopping 1 lux @ 260m

Pure White 5700K Colour temperature offers stunning clarity and definition and optimal Colour Rendering Index (CRI).

New circuit design allows 97% of input power to go directly to LEDs.





BUILT RUGGED

  • Diecast aluminum faceplate, extruded Aluminum heat sink
  • Dupont Powdercoat is UV and abrasion-resistant to ensure that our bars will never discolor.
  • Gore® Military breather protects against water & dust ingress
  • LEXAN Lens is unbreakable and optically clear
  • IP69K  - Dust + high-pressure water-proof. No hassle car washing!

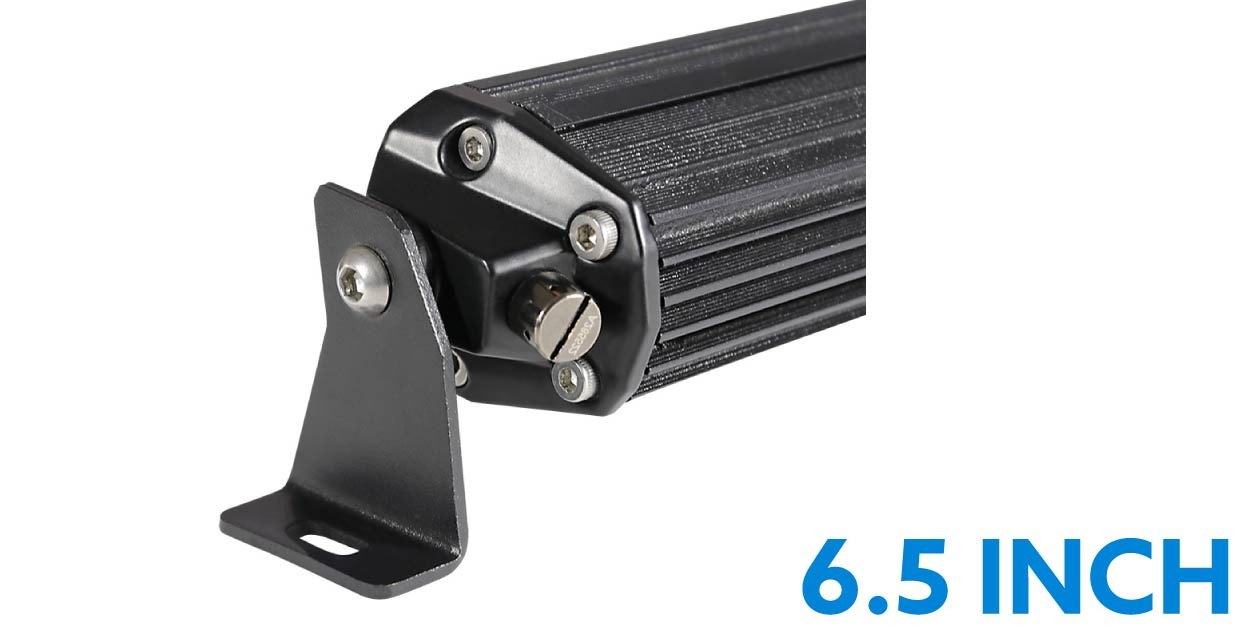

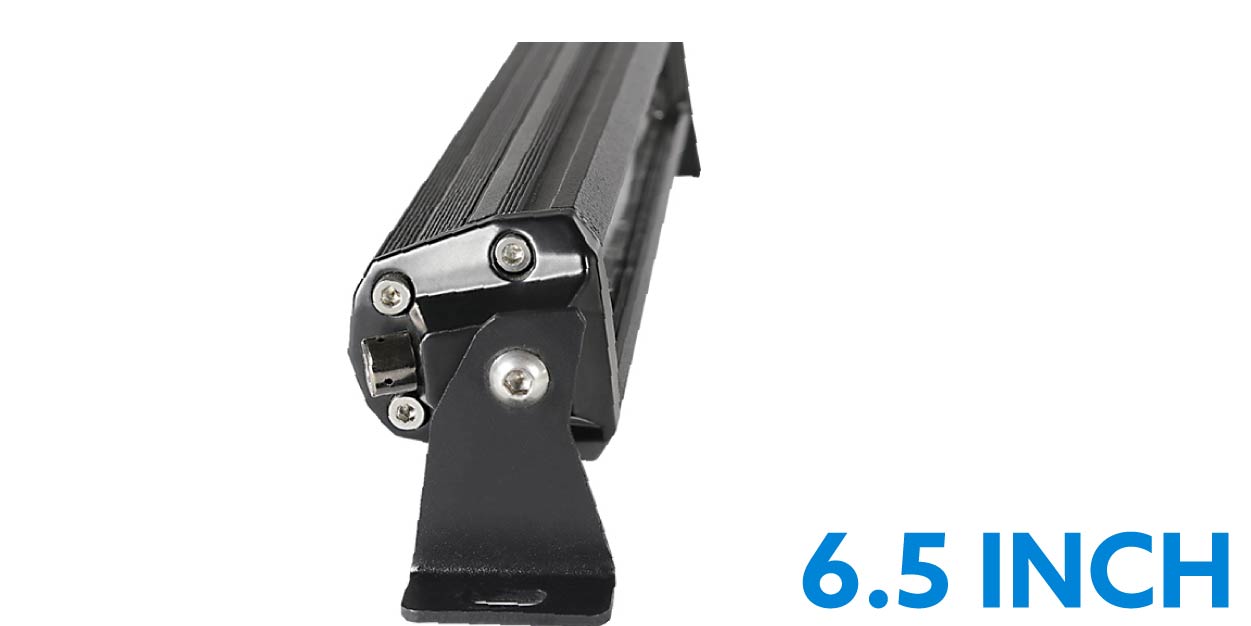

VERSATILE MOUNTING

  • End mounts allow for 360 degrees of rotation.
  • Slim profile allows fitment in low clearance applications.







CONTENTS

  • 1 X 6.5” SRX Series Lightbar
  • 2 x Side mount legs
  • 1 x Male & female Deutsch connectors





OSRAM LED TECHNOLOGY


Perception SRX series lightbars utilize a 5-watt OSRAM Duris P8 LEDs. The result is amazing distance and flood performance. These high output
5 watt LEDs are not to be confused with competitors' inferior 3-watt counterparts.







THE PERCEPTION LIGHTING® GUARANTEE


All Perception Lighting products are manufactured using the highest quality materials. We are so confident that we stand behind this product with a comprehensive 5 Year Australian Warranty.





SPECIFICATIONS


LED POWER     30W (6 x 5W)
LED MANUFACTURER   Genuine OSRAM®

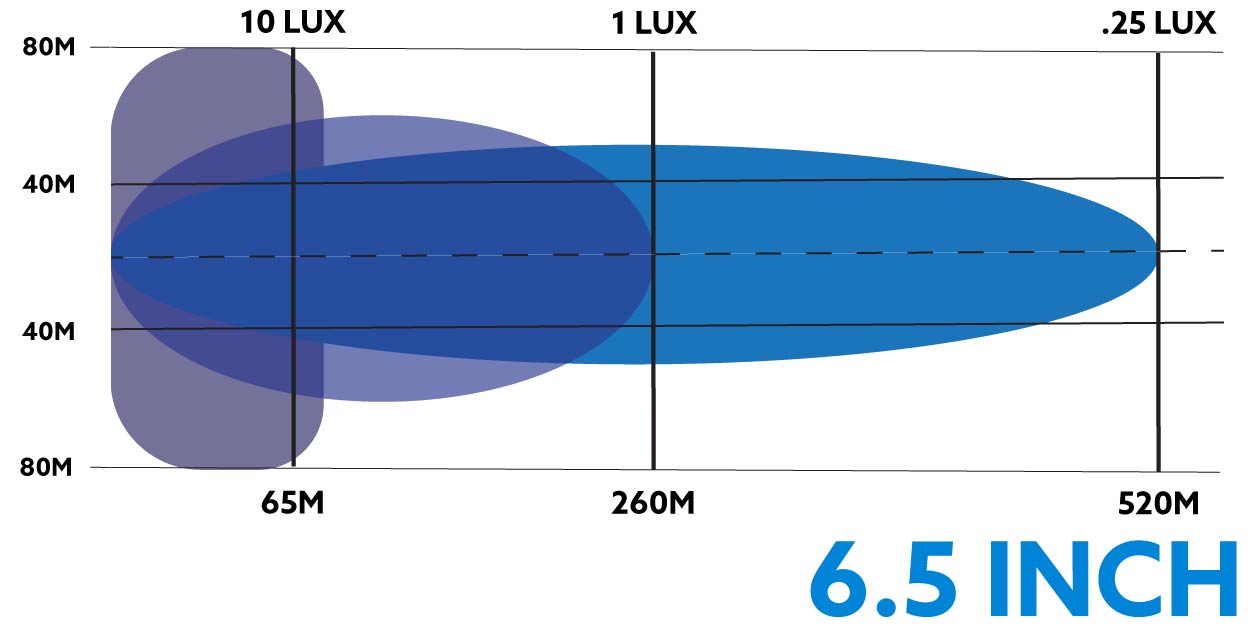

LUX   1 LUX @ 260m
BEAM DISTANCE   0.25 LUX @ 65m
BEAM PATTERN   Combination Spot & Flood
OUTPUT   3648 Lumens
HOUSING MATERIAL   Diecast Aluminium
LENS MATERIAL   GE Lexan Polycarbonate
MOUNTING BRACKET   Side
OPERATING VOLTAGE   10-30V DC
COLOUR TEMPERATURE   5,700K
LED LIFESPAN   50,000 hours
CERTIFICATIONS   CE, RoHS, C-Tick




SKU SRX-6
Brand 12VoltDirect
