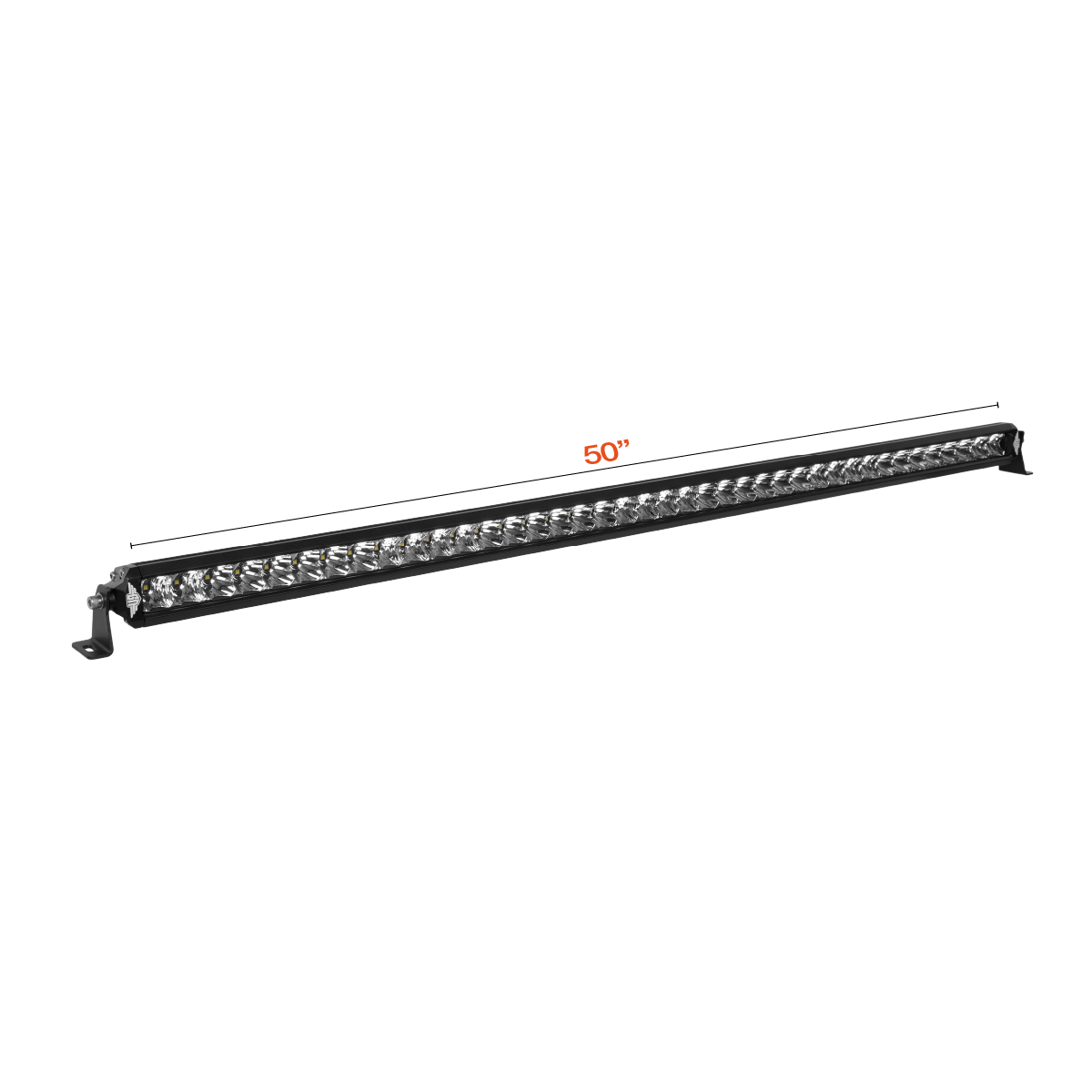

Ultimate9 50" LED Light Bar

Journey on through the night with Ultimate9 LED Light Bars.
A slim, single row LED bar incorporating a screw-less bezel design sealing against all forms of weather, ventilated with the help of a Gore® PolyVent breather and protected by 6063-grade aluminium and GE Lexan® Polycarbonate lenses.


Features:
• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
• IP68 for term long submersion and total dust ingress.
• IP69K for high-pressure cleaning.
• Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
• Housing: 6063 grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
• Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
• Technology: Grade A Osram 5W LED chips & sealed DT connectors.


What Harness Do I Need?

Ultimate9 40" & 50" Light Bars, intended for roof mounting, utilise our Single Output Harnesses.

Lighting installed further from a battery, such as the roof of a vehicle, can experience a voltage drop - a drop in electrical potential from travelling along a longer path. Our Single Output Harness uses a larger DTP connector & heavier gauge AWG wire to reduce voltage drop.


Kit Includes:
• LED Light Bar
• Side-Mount Brackets & Hardware
Harnesses sold separately



Specifications:

  • Input Power: 9-36V
  • Beam Pattern: Flood & Spot Combination
  • Beam Spread: 8° Spot & 20° Flood
  • Power: 218W
  • Current Draw: 16.5A @ 13.2V
  • Raw Lumen: 23,800 lm
  • Effective Lumen: 10,854 lm
  • Beam @ 1 Lux: 625m
  • LED Chips: Osram 5W
  • Colour Temp: 6000-6500K
  • Housing Material: 6063 Aluminium
  • Housing Coating: DuPont®
  • Lens Material: GE Lexan® Polycarbonate
  • IP Rating: IP68 / IP69K
  • Ventilation: Gore® PolyVent
  • Weight: 3.36Kg
  • Body Dimensions: (L)1320 x (H)46 x (W)49mm
  • Lens Dimensions: 50" (1270mm)
  • Connector Type: DT Sealed
  • Operating Temp: -40ºC - 145ºC
  • Certification: CE, RoHS, RCM

Warranty: 24-month replacement warranty

Warranty: 24-month replacement warranty

Specifications:
  • Input Power: 9-36V
  • Beam Pattern: Flood & Spot Combination
  • Beam Spread: 8° Spot & 20° Flood
  • Power: 218W
  • Current Draw: 16.5A @ 13.2V
  • Raw Lumen: 23,800 lm
  • Effective Lumen: 10,854 lm
  • Beam @ 1 Lux: 625m
  • LED Chips: Osram 5W
  • Colour Temp: 6000-6500K
  • Housing Material: 6063 Aluminium
  • Housing Coating: DuPont®
  • Lens Material: GE Lexan® Polycarbonate
  • IP Rating: IP68 / IP69K
  • Ventilation: Gore® PolyVent
  • Weight: 3.36Kg
  • Body Dimensions: (L)1320 x (H)46 x (W)49mm
  • Lens Dimensions: 50" (1270mm)
  • Connector Type: DT Sealed
  • Operating Temp: -40ºC - 145ºC
  • Certification: CE, RoHS, RCM
SKU ULTLED050C
Model # ULTLED050C
Brand Ultimate9
