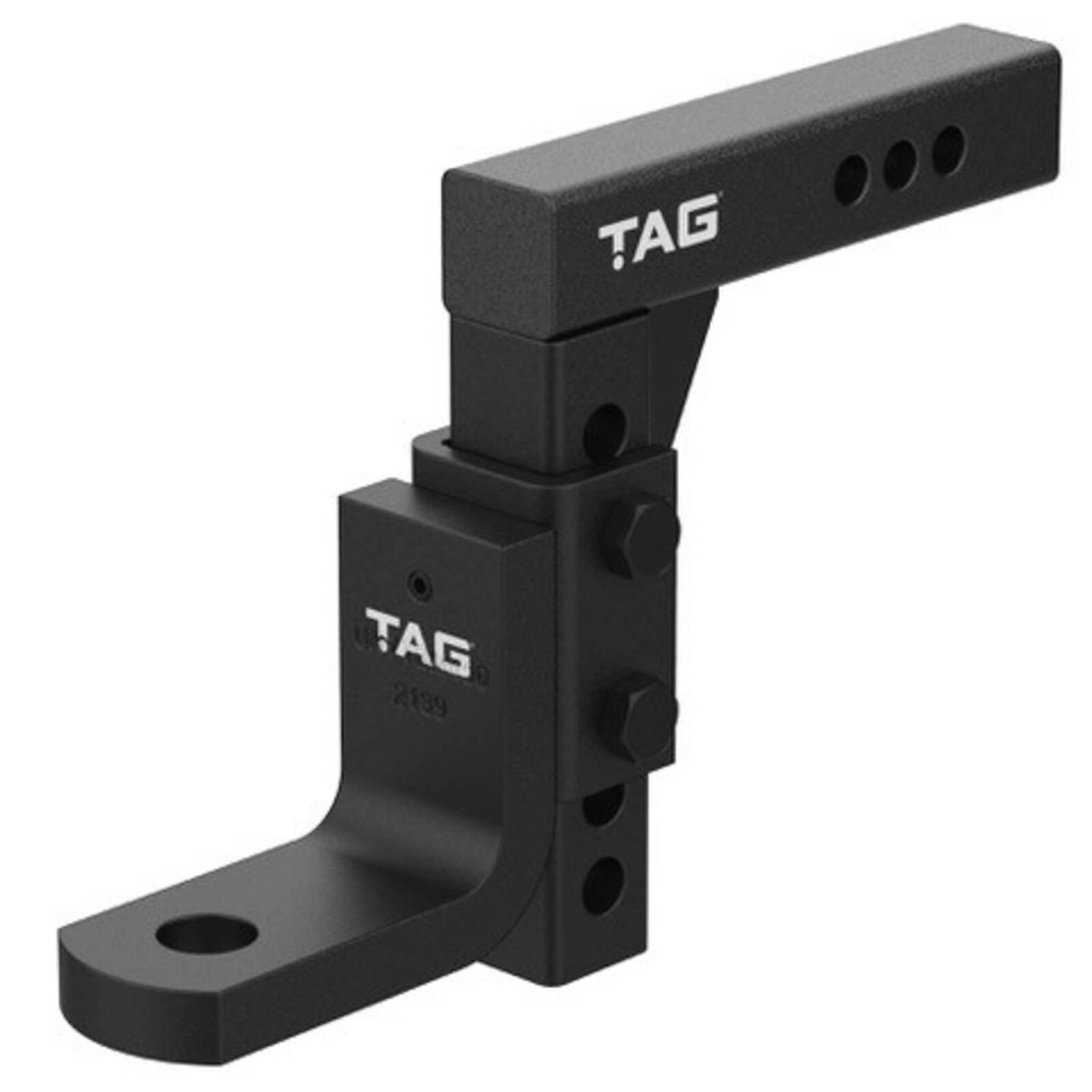

The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup. For full compatibility, the unit includes a reducer allowing the use of a 70mm or 50mm tow ball. Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping.

  • 90° Separate Tongue Face with four adjustable positions.

  • Drop 115mm

  • Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball

  • Fits 70mm tow ball (or 50mm tow ball using included reducer)

  • Gross Trailer Weight 4500kg (70mm Tow Ball) / 3500kg (50mm Tow Ball)

  • Ball Weight 450kg (70mm Tow Ball) / 350kg (50mm Tow Ball)

  • Durable Powder Coated Finish

  • ADR 62/02 Compliant

  • TAG Limited Lifetime Warranty

    Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.

  • Ensure you tighten Allen key grub screw before main attachment bolts.

  • Torque spec on bolts that attach head to shank is 280nm.

SKU UNTTBM450
Barcode # 9340407045381
Brand TAG
Shipping Weight 4.0000kg
Shipping Width 0.270m
Shipping Height 0.090m
Shipping Length 0.290m
Shipping Cubic 0.007047000m3
Assembled Length 0.290m
Assembled Height 0.090m
Assembled Width 0.270m
