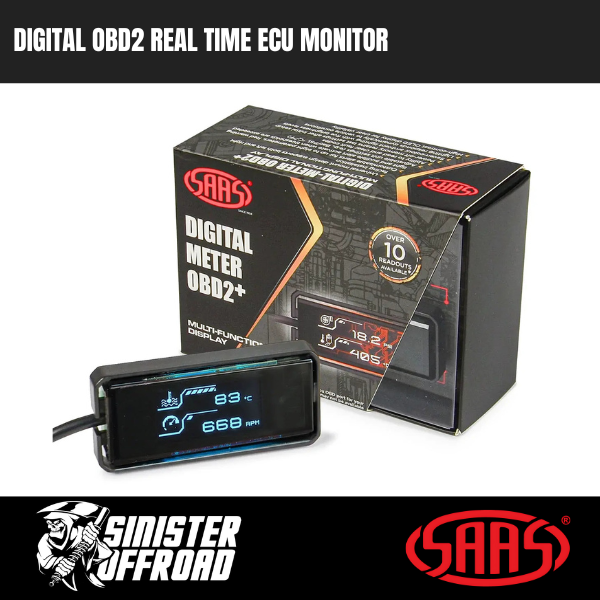

SAAS Digital Multi Function OBD2 Real Time ECU Monitor - SDM1040

The SAAS SDM1040 compact OLED OBD2+ gauge is a powerful yet unobtrusive way to keep vital vehicle data in clear view. Designed for modern vehicles using the OBDII CAN-BUS standard, it connects directly to the vehicle’s ECU to display real-time operating information without the need for additional sensors or complex wiring.

Easy to install

Its slim form factor and versatile mounting design make it suitable for both left-hand and right-hand installations, allowing a clean, factory-style fit in a wide range of cabins. Once installed, the gauge provides instant access to key engine and vehicle parameters, helping drivers monitor performance, efficiency, and potential issues at a glance.

Customise and set alerts

Customisable alerts add an extra layer of protection, with visual and audible warnings available for multiple monitored values. Display preferences can be tailored to suit regional and personal requirements, including selectable pressure and temperature units, while adjustable ambient lighting ensures excellent visibility day or night.

OBD2 Scan Tool

The gauge also supports fault code reading and clearing, making it a practical diagnostic companion for daily driving, touring, or performance applications. All settings are retained when the vehicle is powered off, so your configuration remains exactly as you left it.

Data availability depends on the vehicle’s ECU and the parameters it broadcasts via OBDII; not all vehicles will support every data channel.

Frequently Asked Questions

Will this work with my vehicle?
The gauge is compatible with OBDII CAN-BUS vehicles, however available readings depend on ECU output.

NB: Not suitable for use with Mercedes Benz vehicles

What does an OBD2+ gauge display?
It displays live ECU data broadcast via the OBDII CAN-BUS system, depending on what your vehicle supports.

Can it read and clear fault codes?
Yes, the gauge can read and clear diagnostic fault codes via the OBDII interface.

Features

• Compact OLED digital display for clear, real-time vehicle data
• Discreet (L)65mm x (W)30mm x (D)10mm body
• 1.2m connection cable
• OBD2+ CAN-BUS connection reads information directly from the vehicle ECU
• Simple plug-and-play installation with no additional sensors required
• Versatile mounting design suitable for left-hand or right-hand installation
• Monitors up to 11 ECU data parameters where supported by the vehicle
• Customisable visual and audible alerts for up to 8 selectable parameters
• Selectable unit display for pressure (psi / bar) and temperature (°C / °F)
• Adjustable ambient lighting with 7 colour options and 5 brightness levels
• Power-off memory retains user settings when the vehicle is switched off
• Reads and clears diagnostic fault codes via the OBDII interface
• Compatible with OBDII CAN-BUS vehicles (data availability varies by model)
