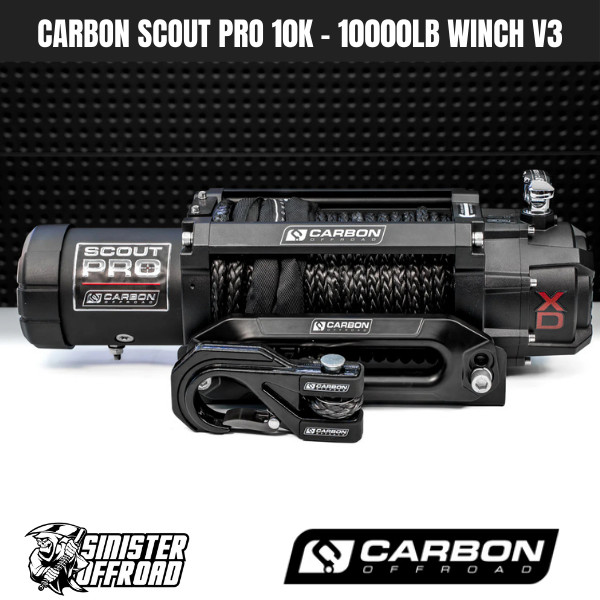

Technical Features:

  • Part number: CW-XD10
  • Rated line pull: 10000 lbs, (4536kg) single-line
  • Motor: 12V DC 6 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.7m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 180:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 24m x 9mm diameter
  • Drum Diameter/Length: 63.5mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 535 x 158 x 187mm
  • Packing Dimensions (L x W x H): 580 x 200 x 220mm
  • Winch weight with synthetic rope attached: 19.0kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7kg



12V DC Performance Specs
Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 31.8(10.6) 60 1/10000(4540)
4000(1814) 10.8(3.8) 190 2/82000(3720)
6000(2722) 8.5(3.2) 250 3/6840(3103)
8000(3630) 6.2(2.6) 4/5820(2640) 78.7(24.0)
10000(4540) 4.6(2.1) 370 -



SKU CW-XD10
Brand Carbon Offroad
Shipping Weight 30.0000kg
Shipping Width 0.200m
Shipping Height 0.220m
Shipping Length 0.580m
Shipping Cubic 0.025520000m3
