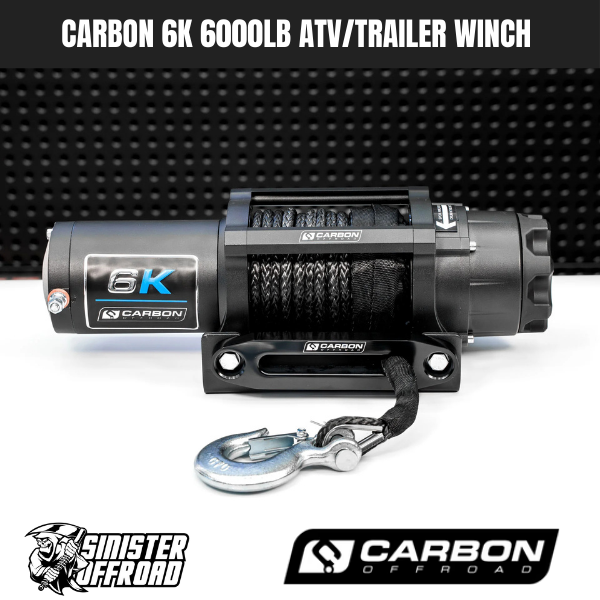

Carbon Offroad 6,000 lb ATV Winch – Compact, versatile winch for ATVs, small 4WDs, trailers, caravans, and boats. Features sealed motor & geartrain, permanent magnet motor, dual wired & wireless remotes, and fail-safe braking.



  • Part number: CW-XD6
  • Rated line pull: 6000 lbs, (2725kg) single-line
  • Motor: 12V DC 2.5 HP permanent magnet (Available in 24V)
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 147:1
  • Clutch: Roller disc full load automatic
  • Brake: Automatic brake in the motor bracket
  • Aluminium hawse
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • IP Rating: IP66 for winch and solenoid (excludes remote control and switch)
  • Synthetic Rope: 16m x 6.5mm diameter
  • Drum Diameter/Length: 51mm x 122mm
  • Mounting Bolt Pattern: 164mm x 76mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 385 x 115 x 119mm
  • Packing Dimensions (L x W x H): 530 x 170 x 230mm
  • Winch weight with synthetic rope attached: 8.3kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg



12V DC Performance Specs
Line Pulls lbs (Kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0 13.8(4.2) 15 1/6000(2725)
2000(1814) 9.5(2.9) 125 2/5350(2430)
4000(3629) 7.2(2.2) 190 3/4780(2170)
6000(5443) 4.6(1.4) 240 4/4270(1940)



SKU CW-XD6
Brand Carbon Offroad
Shipping Weight 12.5000kg
Shipping Width 0.170m
Shipping Height 0.230m
Shipping Length 0.530m
Shipping Cubic 0.020723000m3
