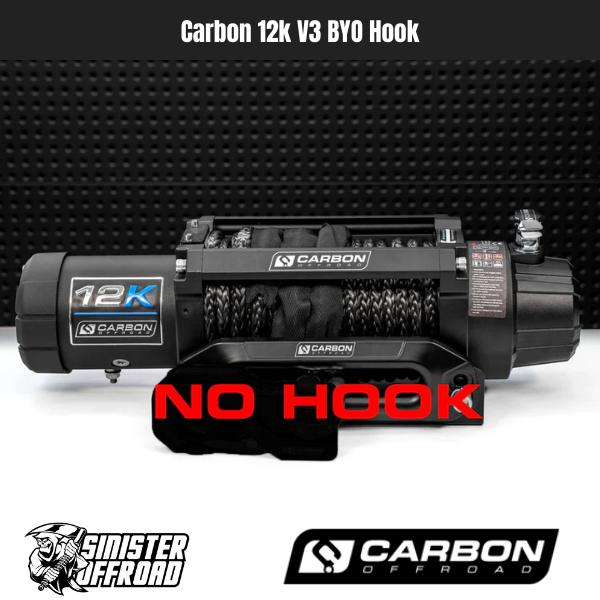

Carbon 12K Winch V3 - BYO Hook

Specifications

  • Part number: CW-12KV3BYO
  • Rated line pull: 12000 lbs, (5450 kg) single-line
  • Motor: 12V DC 6.2HP series wound motor (24V option available)
  • Remote Control: Remote Switch, 12ft (3.7m) lead.
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 216:1
  • Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
  • Brake: Full load automatic brake installed in the motor housing end plate.
  • Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 24m x 10mm diameter
  • Drum Diameter/Length: 64mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 552 x 160 x 172mm (21.7'' x 6.3'' x 6.8'')
  • Packing Dimensions (L x W x H): 615 x 370 x 250mm (24.2" x 14.5" x 9.8")
  • Winch weight with synthetic rope attached: VERSION 3 - 19.0kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 25.95kg



12V DC performance specs (first layer of drum)

Line Pull

Lbs.(Kgs.)

Line Speed

FT./min(M/min.)

Motor

Current

Pull by layer

layer/Lbs(Kgs.)

0

43.3(13.2)

70 Amps

1/12,000 (5450)

2000 (910)

11.5 (3.5)

130 Amps

2/9800 (4450)

4000 (1810)

9.2(2.8)

170 Amps

3/8300 (3770)

6000 (2720)

7.9 (2.4)

220 Amps

4/7200 (3270)

8000 (3630)

6.9 (2.1)

265 Amps

 5/6400 (2900)

10000 (4540)

5.6 (1.7)

320 Amps

 6/5800 (2650)
12000 (4540)  4.6 (1.4)  390 Amps  7/5300 (2420)







SKU CW-12KV3BYO
Brand Carbon Offroad
Shipping Weight 23.0000kg
Shipping Width 0.615m
Shipping Height 0.250m
Shipping Length 0.370m
Shipping Cubic 0.056887500m3
